- The Vertex V1 switch is the first ever switch product designed by Vertex. The original idea was to design something that is traditionally MX style but somehow different from the Cherry switches.

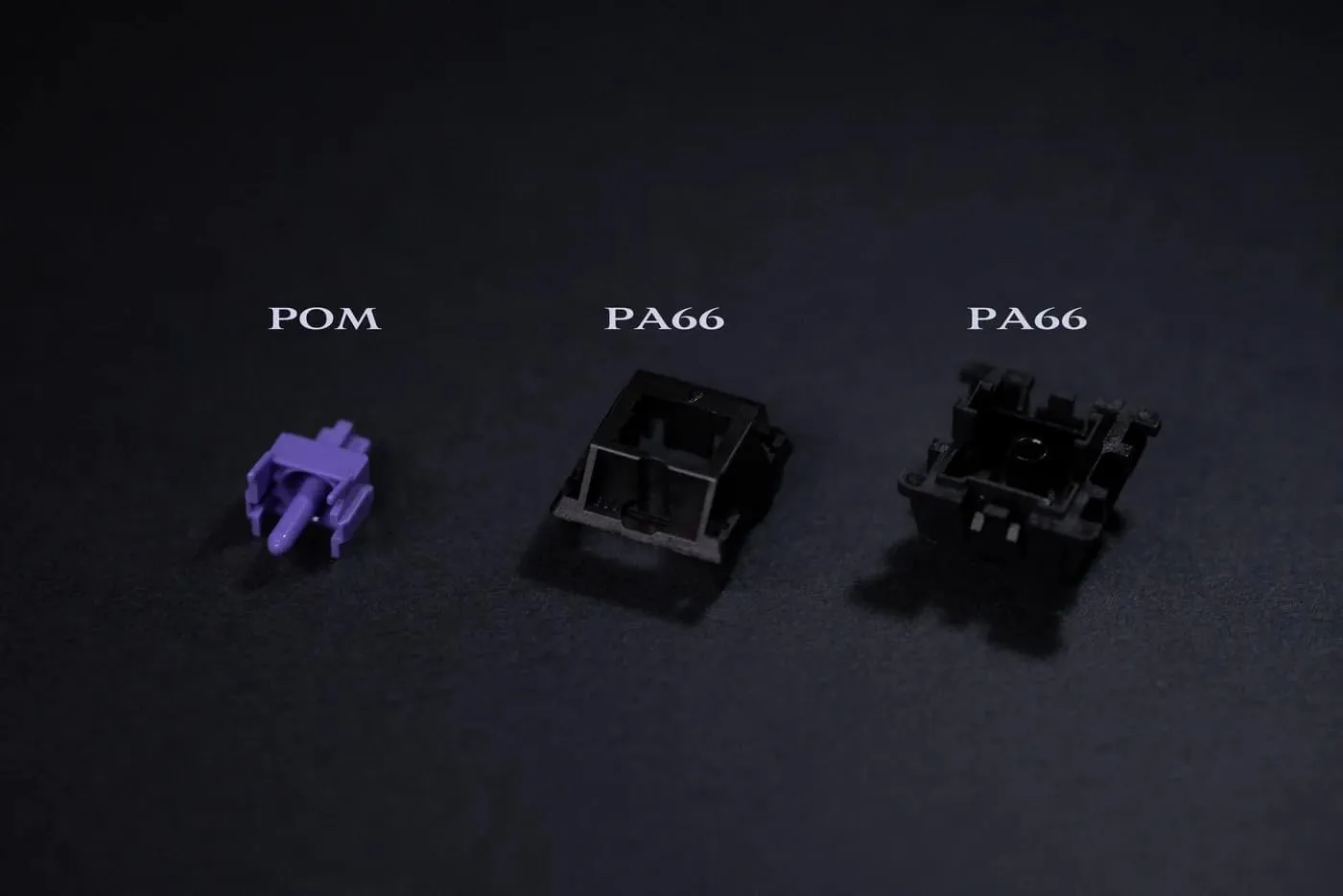

- The V1 switch is made of POM and PA66 which are both materials traditionally used in switch manufacture. However, the POM and PA66 material used on the V1 switch is modified which means their composition is totally different from the POM and PA66 material we had seen on previous switches.
- Vertex used Jwick's new material to increase precision, smoothness and to improved stem wobble, uses point-spray surface treatment as the factory lube method to make it more precise.
- Both factory-lubricated and unlubricated options are available. If you want to lubricate the switch yourself, you can choose the unlubricated version.
- Compatibility: Switches are designed with general MX structure so that they can fit most keycaps sets with (X) cross stem. This greatly improves the compatibility and you can feel free to change the switch and remake your own keyboard.
Product: JWICK & Vertex V1 Switch
Manufacturer: JWICK
Type: Linear Switch
Switch type: MX-stem 5-pin

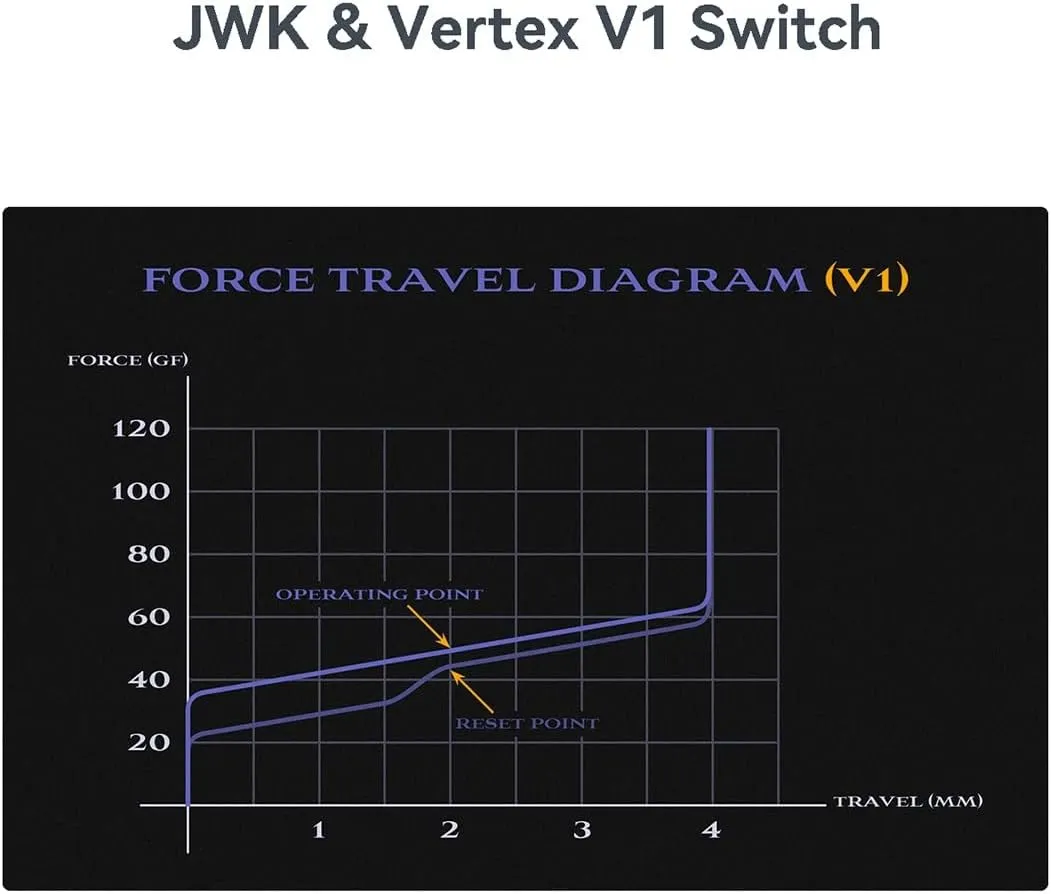

Total travel distance: 4.0 0.3mm
Pre-travel distance: initial force: 35gf(min)
Operation force: 50 10gf
Bottom-out force: 62 10gf
Top Housing: Nylon PA66
Bottom Housing: Nylon PA66
Stem: POM
Switch Spring: 15mm non-gold plated stainless steel
Socket Support: Compatible with all socket types - Outemu, Kailh, and Gateron

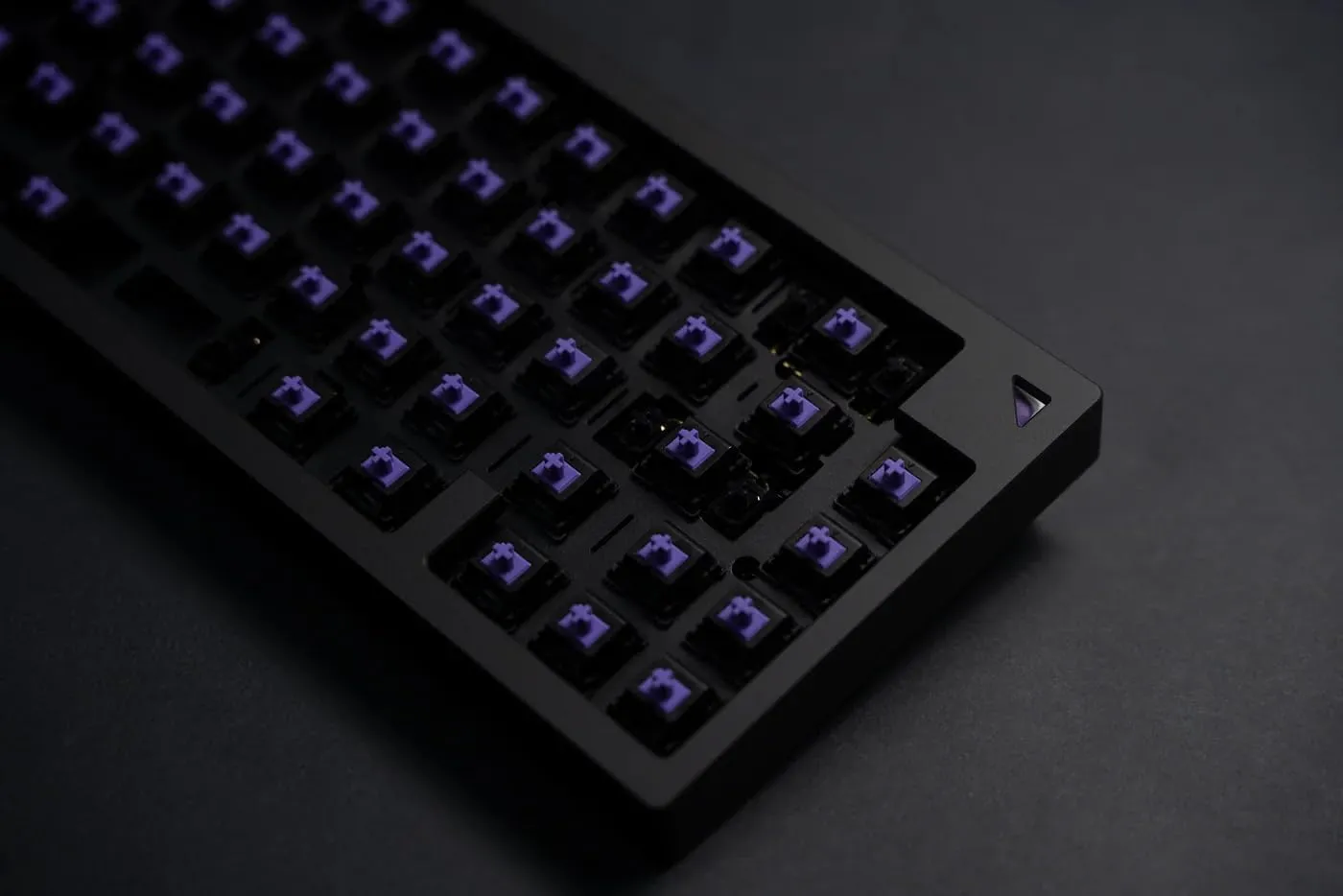

Used for: Mechanical Keyboard
Applicable to: Keycaps of height such as Cherry, XDA, SA, OEM, etc.
Notes:
1. Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures.
2. Due to transportation reasons, some pins of the switch may be bent, but it will not affect the use after correcting with tools such as tweezers.
3. Usually, the number of switches is 70 or more, we will use PET jar for transportation to avoid the damage caused by the switches during transportation.
