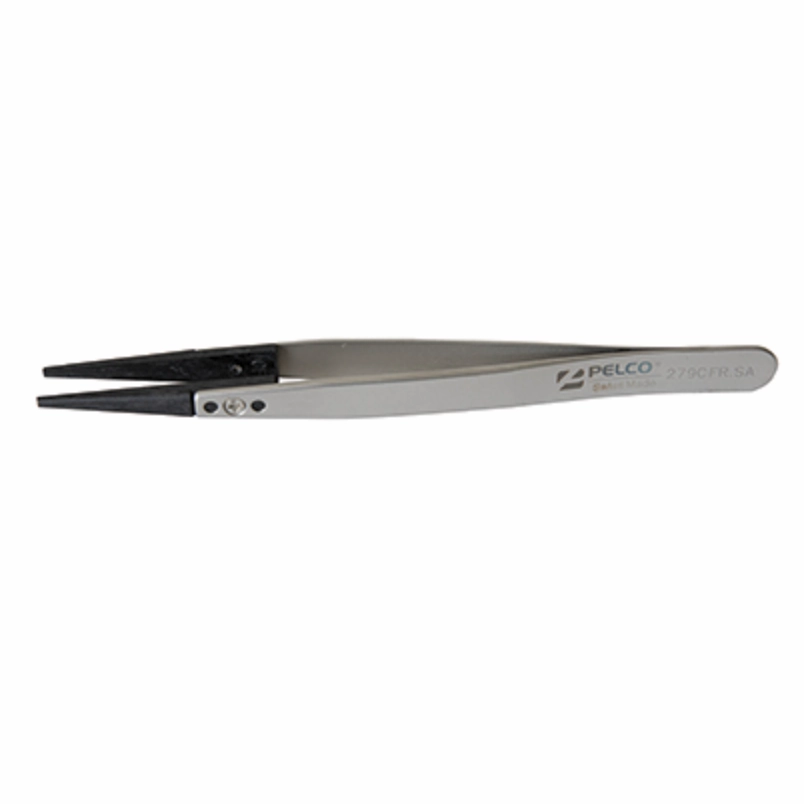

The ESD-safe wafer tweezers are style 279 (flat tips). Soft tips specially designed for the electronics industry to help with easy to mar samples and brittle materials such as Si pieces. These ESD-safe tweezers are made of non-magnetic, acid resistant stainless steel with replaceable carbon fibre reinforced tips. Made in Switzerland. Replacement tip kit includes 1 pair of tips and screws.
Carbofib (Polyamide 66) reinforced with carbon fibre:
- Heat stabilised
- Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
- Low friction, self-lubricating properties, excellent wear and abrasion resistance
- Good heat capability
- Good chemical resistance (oils, grease, fuels, non-polar solvents); not resistant to strong acids, alkalis and hot water or steam
- ESD safe material
- Very low coefficient of linear thermal expansion
- Typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)
Available:
| Code | Description | Length | Material | Points Width x Thickness |
|---|---|---|---|---|
| TTP5068 | Replaceable Tip Tweezers, Flat Tips | 130mm | Carbofib | 2 x 1.15mm |
| TTP5068-1 | Replacement Tips | Carbofib | 2 x 1.15mm |
